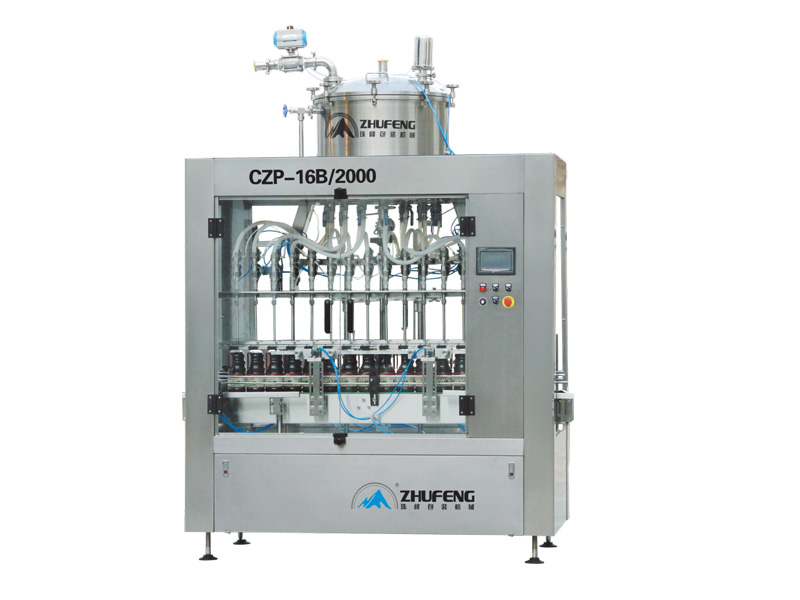

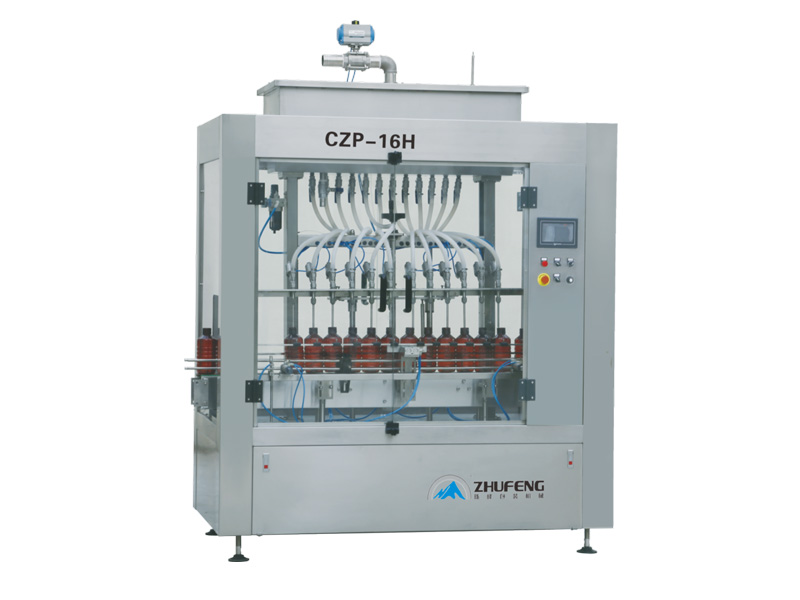

This 6-to-16 head automatic time gravity filling machine is best suited for very thin liquids whose viscosity does not change with ambient temperature or with batch variation.This is a high performance time gravity filling machine with up to 24 heads allows for maximum output and easy to understand operation. The bottle management and filling sequence is electronically controlled entirely by the filling machine. The sophisticated bottle management and error controls allow sustained high speed operation.

Machine Features

• Constructed of stainless steel for complete washdown capability.
• Frame is designed for a range of tanks with float controls to meet the application.
• Pneumatic operated nozzles.
• Nozzle timing protocol is PLC controlled for high accuracy fills.
• Bottom-up fill/Diving nozzle rack for product fill control.
• Automatic drip tray, supply regulation, and bottle indexing gates.
• Precision manual bottle height adjustment.
• No tools required nozzle and gating mounts.
• Automatic drain and clean cycle.
• Batch bottle counter.
• Control panel uses a stalk mounted color touchscreen operator interface.
• Intelligent Automation features like suspended operation.

Machine Specifications

Application(Gravity fillers) – For Very Thin Foamy Liquids

Filling range from 500ml to 5000ml

Four (4) to twelve (24) filling nozzles

Bottle width (diameter): 35mm-110mm

Bottle height: 120mm-300mm

Capacity: 30 ~ 100 BPM
