ZHUFENG supplies a complete range of equipment to fill corrosive products to meet nearly any application. Made from PP/HDPE (high density polyethylene, these filling machines, conveyors and turntables are designed to handle the punishment of a highly corrosive environment where standard metal components would normally dissolve.
Acid & Corrosive Liquid Filling Machine Applications:

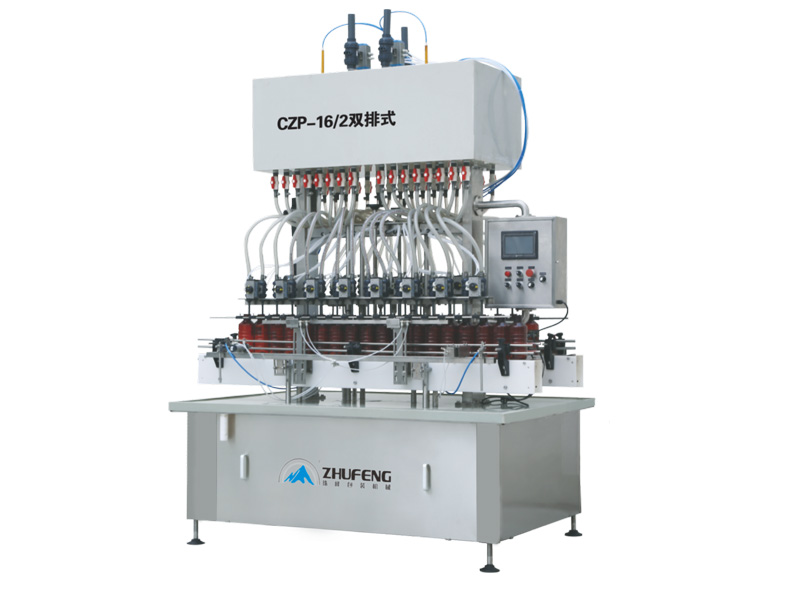

The Acid & Corrosive Liquid Filling Machine is a specially designed timed flow volumetric filler for use in environments where caustic liquids and gasses cause accelerated deterioration to standard packaging machinery. The speed and ease of use make the Acid & Corrosive Liquid Filling Machine an ideal solution for chemical plants producing acids, bleach, ammonia, as well as food plants filling aggressive brine solutions. Each Acid & Corrosive Liquid Filling Machine machine is built from corrosive resistant material custom suited to the product they are intended for.
Auto Corrosive Fillers systems are easy to set up, operate, and adjust with minimal training. An optional ATEX models is also available.
Machine Features
Machine Specifications
| Model | CZP-8 | CZP-16 | CZP-20 |
| Dimension | 2200mm(L)x1100mm(W)x2200mm(H) | 2600mm(L)x1100mm(W)x2200mm(H) | |
| Filling head | 8 | 16 | 20 |
| Capacity(1L) | 2000BPH | 4000BPH | 5000BPH |
| Power | 1.5KW | ||
| Suitable bottle | Diameter: Φ40mm--Φ110mm Height:80mm--300mm | ||
| Filling range | 50ml--1000ml | ||
| Filling accurate | ≤100ml:+/-1.5ml / 100-500ml:+/-2ml / 500-1000ml:+/-3ml | ||
| Filling System | Gravity/Piston Type | ||
| Air pressure | 0.6Mpa-0.8Mpa | ||
| Power supply | 220V/380V, 50Hz / 60Hz | ||
