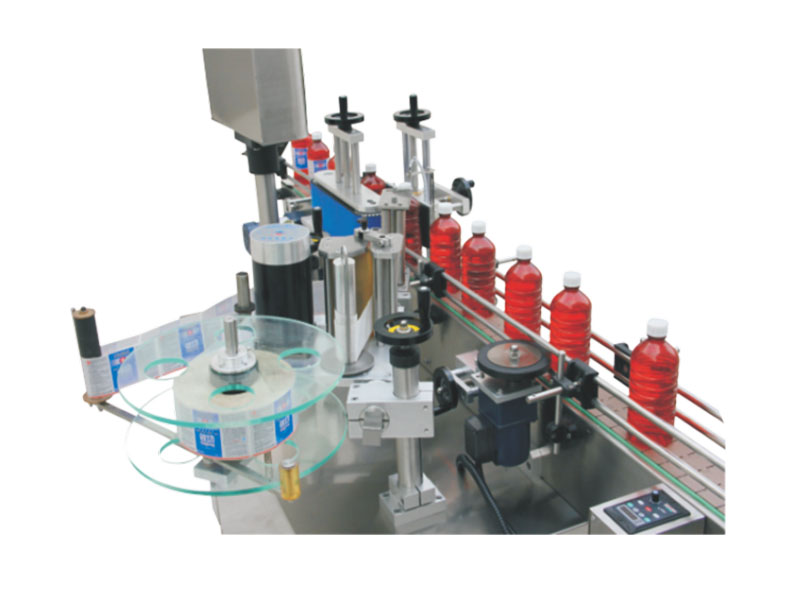

The TNZ-160 is economical, self contained and easy to operate. This automatic labeling system comes equipped with a 6 ft. variable speed conveyor. Additional features include, a stepper motor drive for label, power assisted web take up, full wrap around or tamp station, auto speed adjust (all motors synchronized), and Photo Eye (non-contact) sensors for label gaps and containers. The easy to use design makes it simple to change bottle and label sizes. The TNZ-160  can dispense up to 8” tall labels. It is available with one or two labeling heads for single or front and back containers.

The speed, versatility, and reliability of the TNZ-160 exceeds the other industry leaders in labeling equipment technology at a fraction of the price. Our Labelers are ideal for all plastic, metal, fiber, and glass containers. TNZ-160  handles cylindrical containers.

Features

Stable-Adapt Siemens PLC control and Panasonic servo motor Driven label for machine working stably and label accuracy. It is high performance and high efficiency.

Easy Operation-The touch screen can be in English, Spanish, French, Russia and any other language. It is easy operation and can be connect with other machines for production packaging line.

High precision-Accuracy from +-0.5-1mm. wide application range-Widely using the bottle diameter from 25mm to 120mm, bottle heigh 25mm. to 300mm, If customized height of 10mm-150mm, length of 15mm-300mm, please kindly ask us.

High speed-Speed max can reach 150BPM subject to the label size and bottle size.

Europe standard-The labeling machine is made according to CE standard, Taiwan technology.

Machine Specifications
