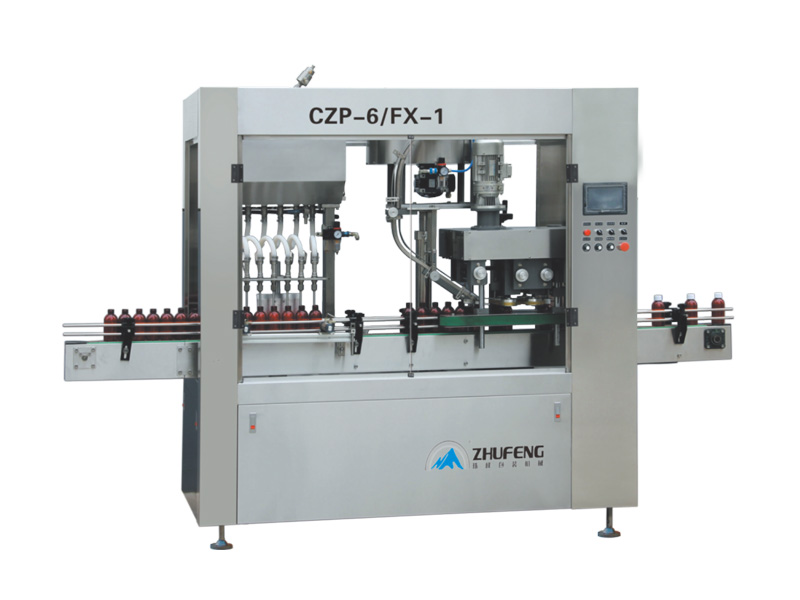

We offer systems for Monoblock Filling and Capping Machine. Whether your cap and container is large or small, your production is fast or slow, pharmaceutical, cosmetics, chemicals, or any industry; ZHUFENG has efficient reliable Monobloc Filler-Cappers systems to fill your needs.

ZHUFENG designs automatic filling, capping, and labeling automated monoblocks. We designed these systems for a wide range of products, ranging alimentary products, chemical, cosmetic, and pharmaceutical products.

Over the years we have gained extensive experience in this field. We make robust and reliable products, as well as components tailored to the specific needs of our customers.

Machine Features

• 4/6 volumetric piston pumps.
• 2 capping heads.
• Diving type filling mechanism: filling nozzles dip into bottles and move up while liquid is being filled. It features less foaming during filling.
• Servo driven on both volumetric pistons and nozzles.
• Flexible adjustments can meet different product characteristics and bottle shapes.
• Various speed settings of liquid filling & capping.
• Capability of recipe storage.
• Simple and quick teach mode setup.
• Track full/ track empty sensors.
• Bottle mouth holder design for special applications (requires to conduct our R and D evaluation).
• PLC control with user-friendly touch screen panel.
• Motorized single lane sanitary conveyor. Customized conveyor lengths are available upon request.
• Main capping turret rotation is driven by an advanced servo motor; its up/down is driven by an AC motor, A cam drive system is used to move the capping head up and down, applicable for a variety of caps. The capping heads adapt magnetic mechanism to control precise capping torque.
• Capping torque inspection system.
• Type 304 stainless steel bin, frame, enclosure panels.
• Type 316L stainless steel and FDA approved liquid contact parts.

Machine Specifications
