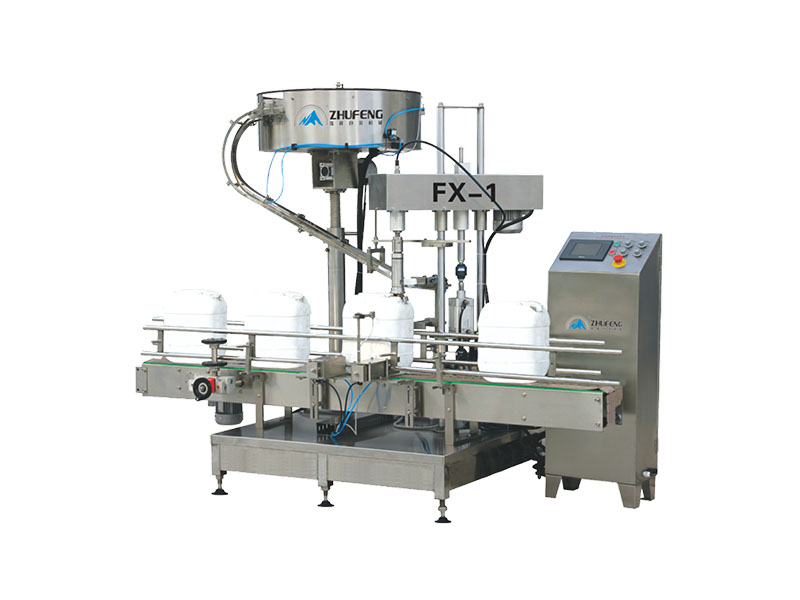

Automatic Single Head Chuck Capping Machine is designed to vertically place a threaded cap onto a rigid container and torque the cap to a specified application torque. This machine is used for caps that can only be vertically placed on a container.
Automatic Single Head Capping Machine is protective automatic capping machine and control by PLC program .Bottles will be fixed by two cylinders and it can automatically arrange lid , taking lid and sending lid,it will first grasp lid then capping under control of double-acting cylinder lifting stroke. The machine grasp lids through pneumatic type, lid-revolving head has a clutch to ensure the tightened lid not to damage. It suits for capping of 5-25kg drum plastic large diameter caps.
Machine Features
Machine Specifications
| Current Supply: | AC220V; 50HZ(or customized) |
| Power: | 2KW |
| Capacity: | 1500 BPH |
| Bottle Diameter: | ≤210(L)×130(W)mm |
| Bottle Height: | 80-450mm |
| Cap Size Range: | Diameter: 12-70mm Height: 10-40mm |
| Qualified Rate: >98% | >98% |
| Air Pressure: | 0.5~0.7 MPA |
| Machine Weight: | 550kg |
| Machine Dimensions: | 2000 x 1050 x 2100mm(L x Wx H) |
